Prolog Tutorial

Prolog, as the name itself suggests, is the short form of LOGical PROgramming. It is a logical and declarative programming language. Before diving deep into the concepts of Prolog, let us first understand what exactly logical programming is.

Logic Programming

Logic Programming is one of the computer programming paradigms in which program statements express facts and rules about different problems within a system of formal logic.

Rules are written in the form of logical clauses, where a head and a body are present. For example, if H is the head and B1, B2, B3 are the elements of the body, then the rule states that H is true when B1, B2, and B3 are all true.

Facts are similar to rules but do not have a body.

What Is Prolog?

Prolog (PROgramming in LOGics) is a logical and declarative programming language. It is a major example of a fourth-generation language that supports the declarative programming paradigm.

Prolog is particularly suitable for programs involving symbolic or non-numeric computation. For this reason, it is widely used in Artificial Intelligence, where symbol manipulation and inference are fundamental tasks.

Installing Prolog

To install Prolog on a Debian-based system:

sudo apt update
sudo apt install gprolog

To start Prolog:

gprolog

Begin by practicing a basic Hello World program directly in the terminal:

write('Hello World').

Note

Use single quotes, not double quotes, and end each command with a period.

Important

The command halt. exits the Prolog environment.

Creating Prolog Files

File Naming Convention

file_name.pl

Each file should begin with:

:- initialization(main).

Write your code below this line.

To compile and load the file:

consult('file_name.pl').

Theory

Knowledge Base

The knowledge base is one of the fundamental parts of logic programming. It stores facts and rules that describe relationships and properties within a problem domain.

Facts, Rules, and Queries

Facts, rules, and queries are the building blocks of logic programming.

Facts

Facts define explicit relationships between objects and properties. Facts are unconditionally true.

Examples:

• Tom is a cat

• Kunal loves to eat pasta

• Hair is black

• Nawaz loves to play games

• Pratyusha is lazy

Syntax:

relation(object1, object2, ...).

Example:

cat(tom).
loves_to_eat(kunal, pasta).
of_color(hair, black).
loves_to_play_games(nawaz).
lazy(pratyusha).

Rules

Rules define implicit relationships between objects. They are conditionally true: if the conditions on the right-hand side (Body) are true, then the left-hand side (Head) is also true.

Examples:

• Lili is happy if she dances

• Tom is hungry if he searches for food

• Jack and Bili are friends if both love cricket

• He will go to play if school is closed and he is free

Syntax notes:

• :- is read as if or is implied by

• Left-hand side is the Head

• Right-hand side is the Body

• Comma (,) represents conjunction

• Semicolon (;) represents disjunction

rule_name(object1, object2, ...) :-
    fact_or_rule(object1, object2, ...).

Queries

Queries ask questions about relationships or properties.

Examples:

• Is Tom a cat?

• Does Kunal love to eat pasta?

• Is Lili happy?

• Will Ryan go to play?

Prolog evaluates queries and returns answers based on the knowledge base.

Program Examples

Consider a knowledge base where Priya, Tiyasha, and Jaya are girls, and Priya can cook.

girl(priya).
girl(tiyasha).
girl(jaya).
can_cook(priya).

Note

Names must be lowercase. Identifiers beginning with uppercase letters are treated as variables in Prolog.

Example queries:

• Is Priya a girl? → Yes

• Is Jamini a girl? → No

• Can Priya cook? → Yes

• Can Jaya cook? → No

Another example using rules:

sing_a_song(ananya). %fact
listens_to_music(rohit). %fact
listens_to_music(ananya) :- sing_a_song(ananya). %rule
happy(ananya) :- sing_a_song(ananya). %rule
happy(rohit) :- listens_to_music(rohit). %rule
playes_guitar(rohit) :- listens_to_music(rohit). %rule

Interpretation:

• Ananya sings → she listens to music

• Rohit listens to music → he is happy

• Queries resolve automatically based on defined rules

Knowledge Base with Variables

Variables begin with uppercase letters. When querying, Prolog returns results one at a time. Press ; to see the next result.

Code

can_cook(priya).
can_cook(jaya).
can_cook(tiyasha).
likes(priya,jaya) :- can_cook(jaya).
likes(priya,tiyasha) :- can_cook(tiyasha).

Command-Line Output

| ?- consult('D:/TP Prolog/Sample Codes/kb3.pl').
| ?- can_cook(X).
X = priya ? ;
X = jaya ? ;
X = tiyasha.

| ?- likes(priya, X).
X = jaya ? ;
X = tiyasha.

Relations in Prolog

Prolog expresses relationships between objects and their properties.

For example, the statement Amit has a bike expresses ownership. A query such as Does Amit own a bike? searches for that relationship.

Relationships may be explicitly stated as facts or inferred through rules.

Example: defining a brother relationship.

Conditions:

• Both are male

• They share a parent

parent(sudip, piyush).
parent(sudip, raj).
male(piyush).
male(raj).

brother(X, Y) :-
    parent(Z, X),
    parent(Z, Y),
    male(X),
    male(Y),
    X \= Y.

Family Tree Example

Code

female(pam).
female(liz).
female(pat).
female(ann).
male(jim).
male(bob).
male(tom).
male(peter).
parent(pam,bob).
parent(tom,bob).
parent(tom,liz).
parent(bob,ann).
parent(bob,pat).
parent(pat,jim).
parent(bob,peter).
parent(peter,jim).
mother(X,Y):- parent(X,Y),female(X).
father(X,Y):- parent(X,Y),male(X).
haschild(X):- parent(X,_).
sister(X,Y):- parent(Z,X),parent(Z,Y),female(X),X\==Y.
brother(X,Y):-parent(Z,X),parent(Z,Y),male(X),X\==Y.

Command-Line Output

| ?- parent(X, jim).
X = pat ? ;
X = peter.

| ?- mother(X, Y).
X = pam,
Y = bob ? ;
X = pat,
Y = jim ? ;

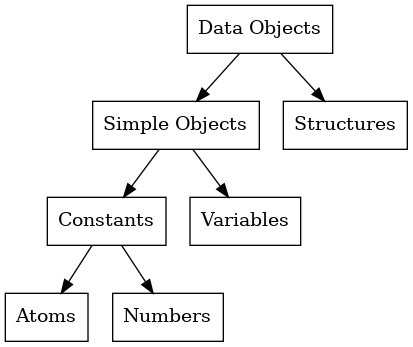

Data Objects

Atoms and Variables

Atoms

Atoms are constants representing names or objects.

Rules for atoms:

• Begin with a lowercase letter

• May include letters, digits, and underscores

Examples:

• azahar

• b59

• b_59AB

• antara_sarkar

Numbers

Numbers are another form of constants. Examples:

• 100

• 4

• -81

Typical integer range: -16383 to 16383

Variables

Variables begin with an uppercase letter or underscore.

Examples:

• X

• Sum

• Student_List

• _Temp

Loops and Decision Making

Loops

Prolog does not use traditional loop constructs like for or while. Instead, repetition is achieved using recursion and predicates.

Example loop using recursion:

count_to_10(10) :- write(10),nl.count_to_10(X) :-   write(X),nl,   Y is X + 1,   count_to_10(Y).

Output

| ?- count_to_10(3).
3
4
5
6
7
8
9
10

true ?

 (47 ms) yes
 | ?-

Loops Using between/3

The between/3 predicate can simulate looping with a range.

count_down(L, H) :-   between(L, H, Y),   Z is H - Y,   write(Z), nl.
count_up(L, H) :-   between(L, H, Y),   Z is L + Y,   write(Z), nl.

Output

| ?- consult('D:/TP Prolog/Sample Codes/loop.pl').
 compiling D:/TP Prolog/Sample Codes/loop.pl for byte code...
 D:/TP Prolog/Sample Codes/loop.pl compiled, 1 lines read - 1073 bytes written, 3 ms

 yes
 | ?- count_down(12,17).
 5

 true ? ;
 4

 true ? ;
 3

 true ? ;
 2

 true ? ;
 1

 true ? ;
 0

 (31 ms) yes
 | ?- count_up(5,12).
 10

 true ? ;
 11

 true ? ;
 12

 true ? ;
 13

 true ? ;
 14

 true ? ;
 15

 true ? ;
 16

 true ? ;
 17

 (47 ms) yes
 | ?-

notes:: contue with decision making section and then finish part 1

part 2 will contain:

operators lists built in predicates
